Logical Diagram
| Target Namespace | http://www.openmicroscopy.org/Schemas/BinaryFile/2008-09 |
|---|---|
| Version | 1 |
| Element and Attribute Namespaces |
|
| Schema Composition |
|
| Documentation | The elements in this file are not yet represented by classes in the EA diagrams - ajp |
| Prefix | Namespace |
|---|---|
| xml | http://www.w3.org/XML/1998/namespace |
| Bin | http://www.openmicroscopy.org/Schemas/BinaryFile/2008-09 |
| xsd | http://www.w3.org/2001/XMLSchema |

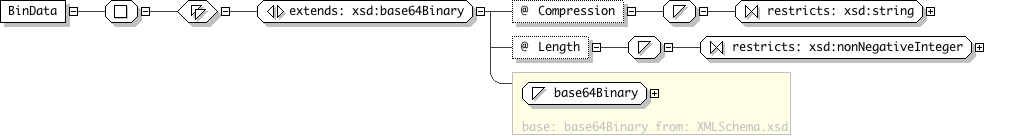

| Name | BinData |
|---|---|
| Used by (from the same schema document) | Element BinaryFile |
| Type | Locally-defined complex type |
| Nillable | no |
| Abstract | no |
| Documentation | The contents of this element are base64-encoded. These are not CDATA sections, just a base64 stream. |
'Specifies the compression scheme used to encode the data.'
"'Character count attribute for the BinData field. This is the length of the base-64 encoded block. It allows easy skipping of the block when parsing the file. Added in response to Evolution document - ajp'
">

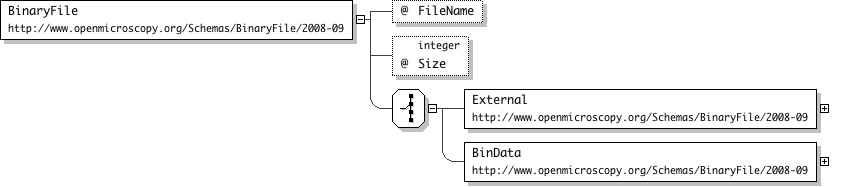

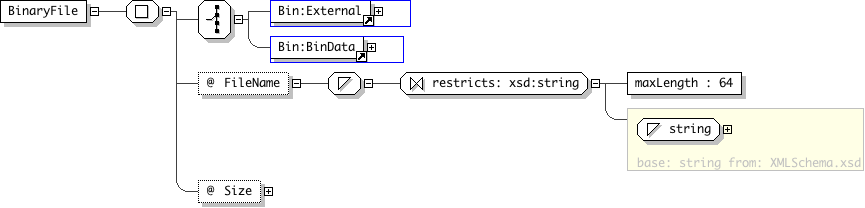

| Name | BinaryFile |
|---|---|
| Type | Locally-defined complex type |
| Nillable | no |
| Abstract | no |
| Documentation | Describes a binary file. |

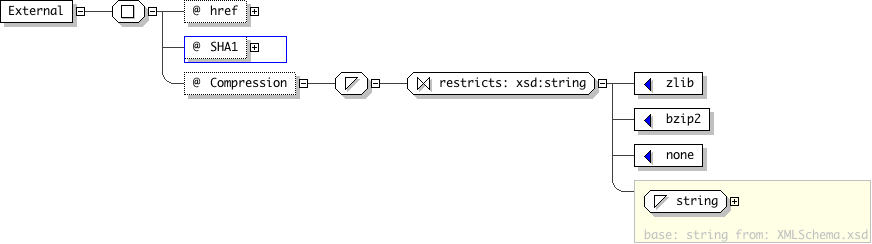

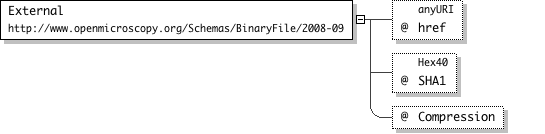

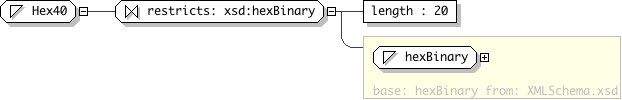

| Name | External |
|---|---|
| Used by (from the same schema document) | Element BinaryFile |
| Type | Locally-defined complex type |
| Nillable | no |
| Abstract | no |
| Documentation | Describes a file location. Can optionally specify a portion of a file using Offset and a ReadLength. If Offset and ReadLength are specified in conjuction with Compression, then they point into the uncompressed file. |
| Super-types: | xsd:hexBinary < Hex40 (by restriction) |
|---|---|
| Sub-types: | None |
| Name | Hex40 |
|---|---|
| Used by (from the same schema document) | Element External |
| Content |
|
| Super-types: | Address < AusAddress (by extension) |
|---|---|
| Sub-types: |
|
| Name | AusAddress |
|---|---|
| Abstract | no |
