Documentation for OME Schemas

Target Namespace	http://www.openmicroscopy.org/Schemas/CA/2008-09
Version	1
Element and Attribute Namespaces	Global element and attribute declarations belong to this schema's target namespace. By default, local element declarations belong to this schema's target namespace. By default, local attribute declarations have no namespace.
Schema Composition	This schema imports schema(s) from the following namespace(s): http://www.openmicroscopy.org/Schemas/OME/2008-09 (at http://www.openmicroscopy.org/Schemas/OME/2008-09/ome.xsd)

Prefix	Namespace
Default namespace	http://www.openmicroscopy.org/Schemas/CA/2008-09
xml	http://www.w3.org/XML/1998/namespace
xsd	http://www.w3.org/2001/XMLSchema
OME	http://www.openmicroscopy.org/Schemas/OME/2008-09

Schema Component Representation

<xsd:schema targetNamespace="http://www.openmicroscopy.org/Schemas/CA/2008-09" version="1" elementFormDefault="qualified">

<xsd:import namespace="http://www.openmicroscopy.org/Schemas/OME/2008-09" schemaLocation="http://www.openmicroscopy.org/Schemas/OME/2008-09/ome.xsd"/>

...

</xsd:schema>

Name	CustomAttributes
Used by (from the same schema document)	Element OME , Element Dataset , Element Image , Element Region
Type	Locally-defined complex type
Nillable	no
Abstract	no

XML Instance Representation

Allow any elements from any namespace (skip validation). [0..*]

</CustomAttributes>

Schema Component Representation

<xsd:element name="CustomAttributes">

<-- top level definition -->

<xsd:complexType>

<xsd:sequence>

<xsd:any processContents="skip" minOccurs="0" maxOccurs="unbounded"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

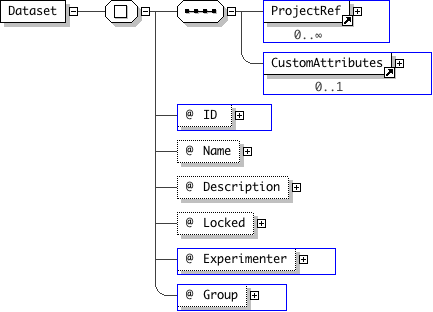

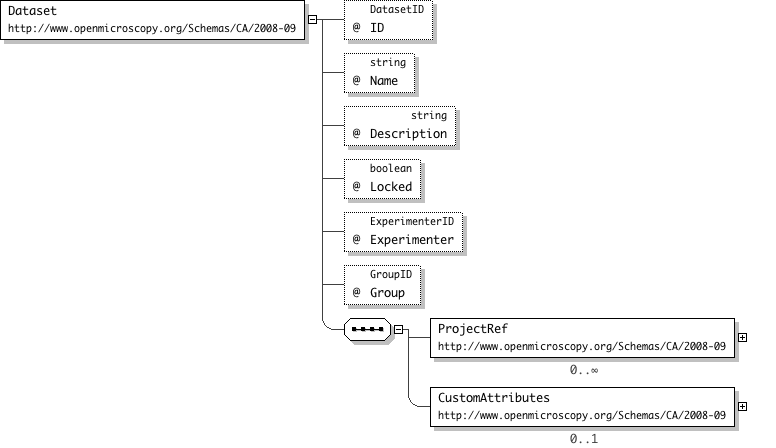

Name	Dataset
Used by (from the same schema document)	Element OME
Type	Locally-defined complex type
Nillable	no
Abstract	no

XML Instance Representation

<ProjectRef> ... </ProjectRef> [0..*]

<CustomAttributes> ... </CustomAttributes> [0..1]

</Dataset>

Schema Component Representation

<xsd:element name="Dataset">

<-- top level definition -->

<xsd:complexType>

<xsd:sequence>

<xsd:element ref=" ProjectRef " minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref=" CustomAttributes " minOccurs="0" maxOccurs="1"/>

</xsd:sequence>

<xsd:attribute name="ID" type=" OME:DatasetID " use="required"/>

<xsd:attribute name="Name" type=" xsd:string " use="optional"/>

<xsd:attribute name="Description" type=" xsd:string " use="optional"/>

<xsd:attribute name="Locked" type=" xsd:boolean " use="optional"/>

<xsd:attribute name="Experimenter" type=" OME:ExperimenterID " use="optional"/>

<xsd:attribute name="Group" type=" OME:GroupID " use="optional"/>

</xsd:complexType>

</xsd:element>

Name	DatasetRef
Used by (from the same schema document)	Element Image
Type	Locally-defined complex type
Nillable	no
Abstract	no

XML Instance Representation

Schema Component Representation

<xsd:element name="DatasetRef">

<-- top level definition -->

<xsd:complexType>

<xsd:attribute name="ID" type=" OME:DatasetID " use="required"/>

</xsd:complexType>

</xsd:element>

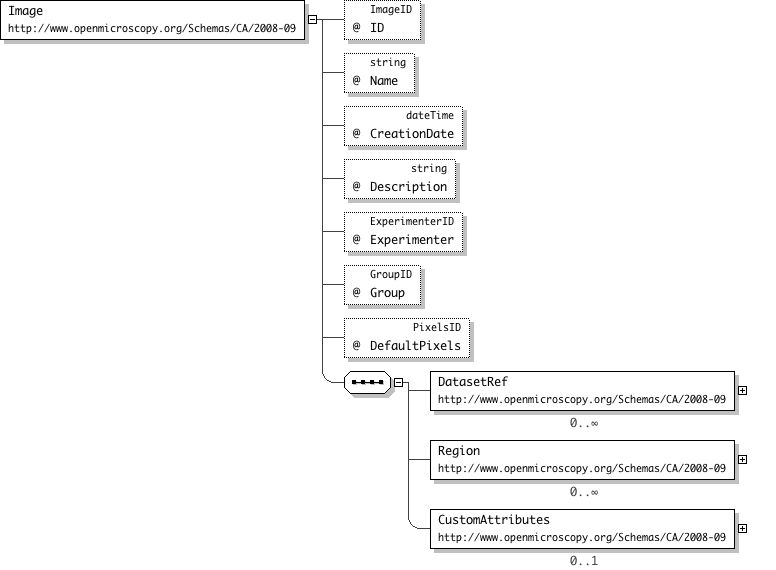

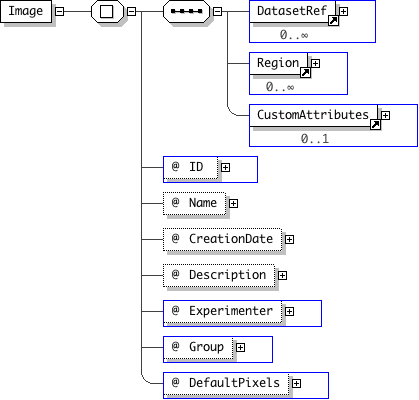

Name	Image
Used by (from the same schema document)	Element OME
Type	Locally-defined complex type
Nillable	no
Abstract	no

XML Instance Representation

<DatasetRef> ... </DatasetRef> [0..*]

<Region> ... </Region> [0..*]

<CustomAttributes> ... </CustomAttributes> [0..1]

</Image>

Schema Component Representation

<xsd:element name="Image">

<-- top level definition -->

<xsd:complexType>

<xsd:sequence>

<xsd:element ref=" DatasetRef " minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref=" Region " minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref=" CustomAttributes " minOccurs="0" maxOccurs="1"/>

</xsd:sequence>

<xsd:attribute name="ID" type=" OME:ImageID " use="required"/>

<xsd:attribute name="Name" type=" xsd:string " use="optional"/>

<xsd:attribute name="CreationDate" type=" xsd:dateTime " use="optional"/>

<xsd:attribute name="Description" type=" xsd:string " use="optional"/>

<xsd:attribute name="Experimenter" type=" OME:ExperimenterID " use="optional"/>

<xsd:attribute name="Group" type=" OME:GroupID " use="optional"/>

<xsd:attribute name="DefaultPixels" type=" OME:PixelsID " use="optional"/>

</xsd:complexType>

</xsd:element>

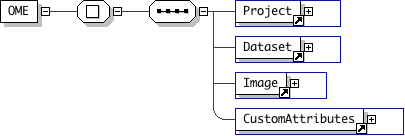

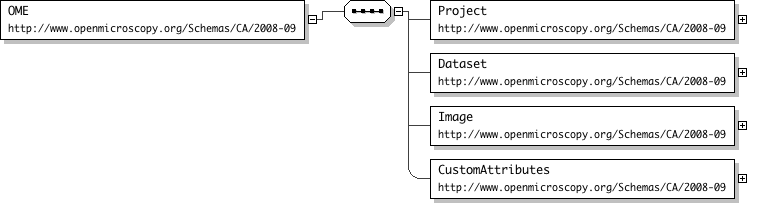

Name	OME
Type	Locally-defined complex type
Nillable	no
Abstract	no

XML Instance Representation

<OME>

<Project> ... </Project> [1]

<Dataset> ... </Dataset> [1]

<Image> ... </Image> [1]

<CustomAttributes> ... </CustomAttributes> [1]

</OME>

Schema Component Representation

<xsd:element name="OME">

<-- top level definition -->

<xsd:complexType>

<xsd:sequence>

<xsd:element ref=" Project " minOccurs="1" maxOccurs="1"/>

<xsd:element ref=" Dataset " minOccurs="1" maxOccurs="1"/>

<xsd:element ref=" Image " minOccurs="1" maxOccurs="1"/>

<xsd:element ref=" CustomAttributes " minOccurs="1" maxOccurs="1"/>

</xsd:sequence>

</xsd:complexType>

</xsd:element>

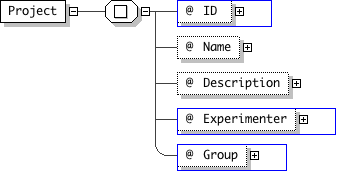

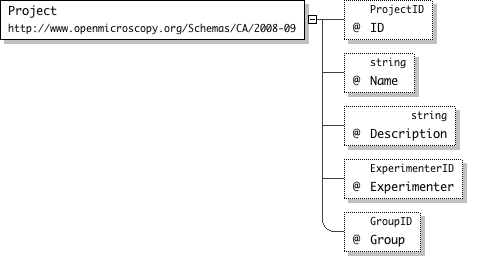

Name	Project
Used by (from the same schema document)	Element OME
Type	Locally-defined complex type
Nillable	no
Abstract	no

XML Instance Representation

Schema Component Representation

<xsd:element name="Project">

<-- top level definition -->

<xsd:complexType>

<xsd:attribute name="ID" type=" OME:ProjectID " use="required"/>

<xsd:attribute name="Name" type=" xsd:string " use="optional"/>

<xsd:attribute name="Description" type=" xsd:string " use="optional"/>

<xsd:attribute name="Experimenter" type=" OME:ExperimenterID " use="optional"/>

<xsd:attribute name="Group" type=" OME:GroupID " use="optional"/>

</xsd:complexType>

</xsd:element>

Name	ProjectRef
Used by (from the same schema document)	Element Dataset
Type	Locally-defined complex type
Nillable	no
Abstract	no

XML Instance Representation

Schema Component Representation

<xsd:element name="ProjectRef">

<-- top level definition -->

<xsd:complexType>

<xsd:attribute name="ID" type=" OME:ProjectID " use="required"/>

</xsd:complexType>

</xsd:element>

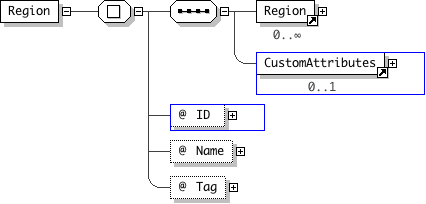

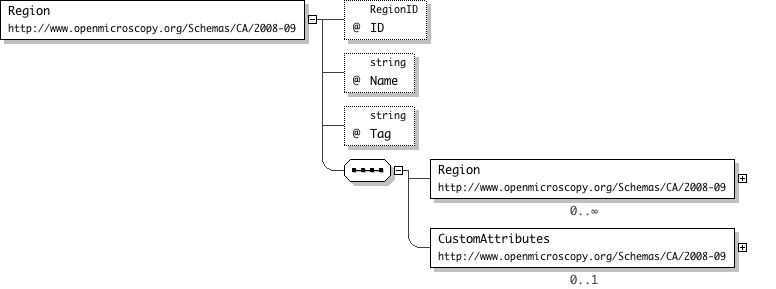

Name	Region
Used by (from the same schema document)	Element Image , Element Region
Type	Locally-defined complex type
Nillable	no
Abstract	no

XML Instance Representation

<Region> ... </Region> [0..*]

<CustomAttributes> ... </CustomAttributes> [0..1]

</Region>

Schema Component Representation

<xsd:element name="Region">

<-- top level definition -->

<xsd:complexType>

<xsd:sequence>

<xsd:element ref=" Region " minOccurs="0" maxOccurs="unbounded"/>

<xsd:element ref=" CustomAttributes " minOccurs="0" maxOccurs="1"/>

</xsd:sequence>

<xsd:attribute name="ID" type=" OME:RegionID " use="required"/>

<xsd:attribute name="Name" type=" xsd:string " use="optional"/>

<xsd:attribute name="Tag" type=" xsd:string " use="optional"/>

</xsd:complexType>

</xsd:element>
