Diagram
| Target Namespace | http://www.openmicroscopy.org/Schemas/STD/2008-09 |
|---|---|
| Version | 1 |
| Element and Attribute Namespaces |
|
| Schema Composition |
|
| Prefix | Namespace |
|---|---|
| xml | http://www.w3.org/XML/1998/namespace |
| STD | http://www.openmicroscopy.org/Schemas/STD/2008-09 |
| xsd | http://www.w3.org/2001/XMLSchema |

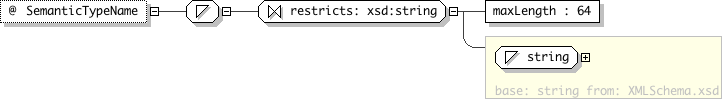

| Name | SemanticTypeName |
|---|---|
| Type | Locally-defined simple type |

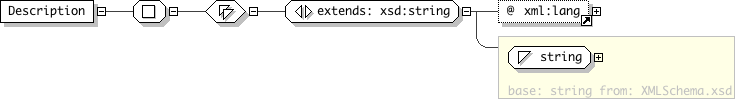

| Name | Description |
|---|---|
| Used by (from the same schema document) | Element Element , Element SemanticType |
| Type | Locally-defined complex type |
| Nillable | no |
| Abstract | no |
| Documentation | Just some human-readable text to serve as documentation. |

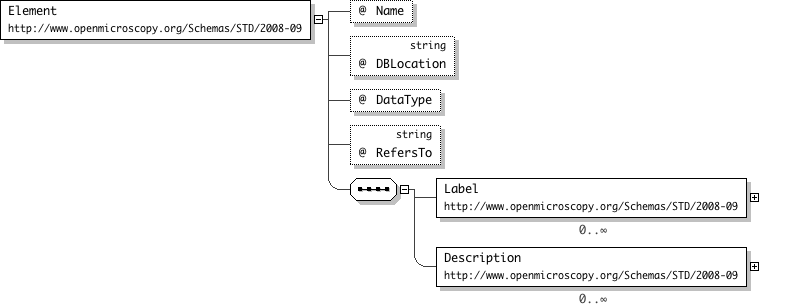

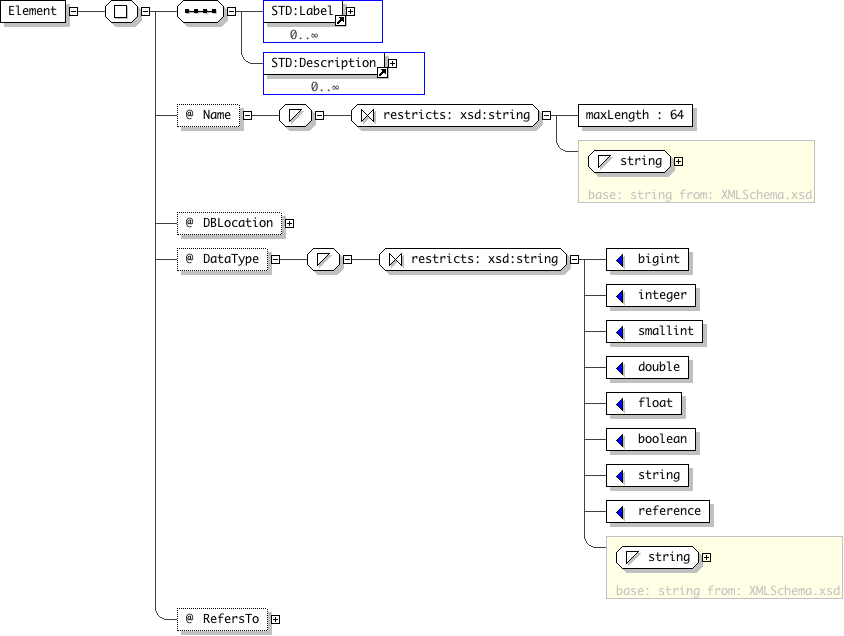

| Name | Element |
|---|---|
| Used by (from the same schema document) | Element SemanticType |
| Type | Locally-defined complex type |
| Nillable | no |
| Abstract | no |
| Documentation | Describes a field of a SemanticType |

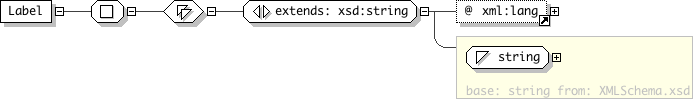

| Name | Label |
|---|---|
| Used by (from the same schema document) | Element Element , Element SemanticType |
| Type | Locally-defined complex type |
| Nillable | no |
| Abstract | no |

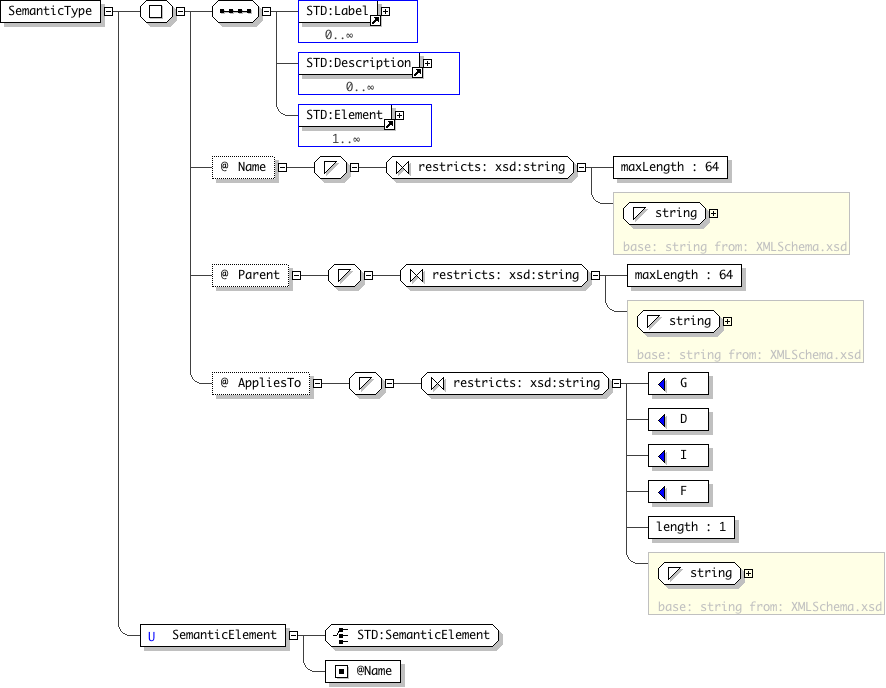

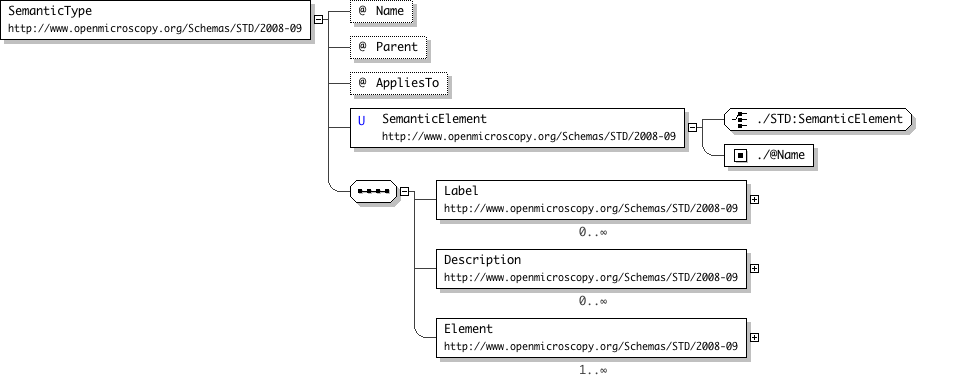

| Name | SemanticType |
|---|---|
| Used by (from the same schema document) | Element SemanticTypeDefinitions |
| Type | Locally-defined complex type |
| Nillable | no |
| Abstract | no |
| Documentation | Defines a semantic type. Notes: Granularity of SemanticType is infered from the granularity of the record it derives from. In a record, this granularity is specified by the AppliesTo attribute. |
'This specifies what this record is an attribute of. The options are Global, Dataset, Image, or Region (was called Feature hence letter F).'
">

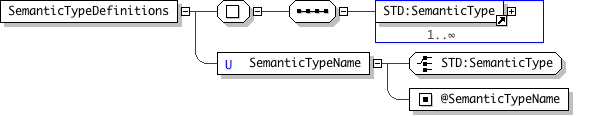

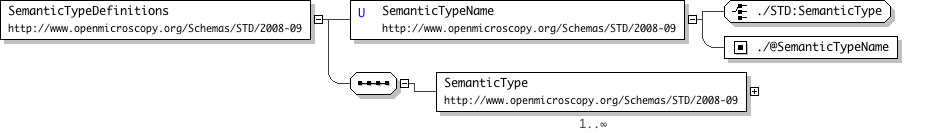

| Name | SemanticTypeDefinitions |
|---|---|
| Type | Locally-defined complex type |
| Nillable | no |
| Abstract | no |
| Documentation | Describes semantic types that can be derived from custom attributes. |
| Super-types: | Address < AusAddress (by extension) |
|---|---|
| Sub-types: |
|
| Name | AusAddress |
|---|---|
| Abstract | no |
